A client approached us to redesign their laser cutting machine bed with interchangeable tables and updated hardware. The original plan involved cast iron, but it was too costly. The challenge was clear: deliver an affordable solution without compromising strength, accuracy, or performance.
We began by studying the existing design, running FEM analyses, and reverse-engineering the weld-induced deformation patterns. Instead of switching to expensive materials, we engineered a welded steel bed made from 18–20 mm plates, reinforced with internal structures designed to evenly distribute stress and maintain long-term rigidity.
We also upgraded the table-changing mechanism using high-grade bearings for smoother operation, precision-machined surfaces for tight tolerances, and stronger chain materials than those typically used.

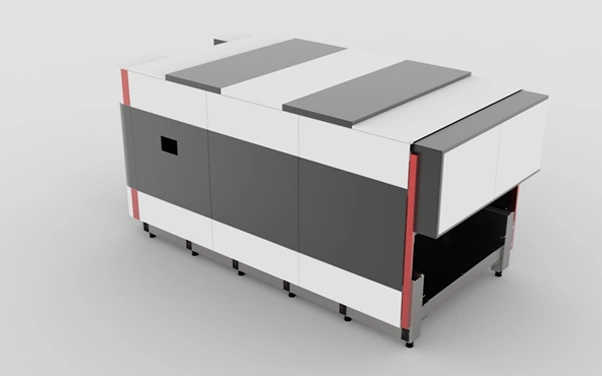

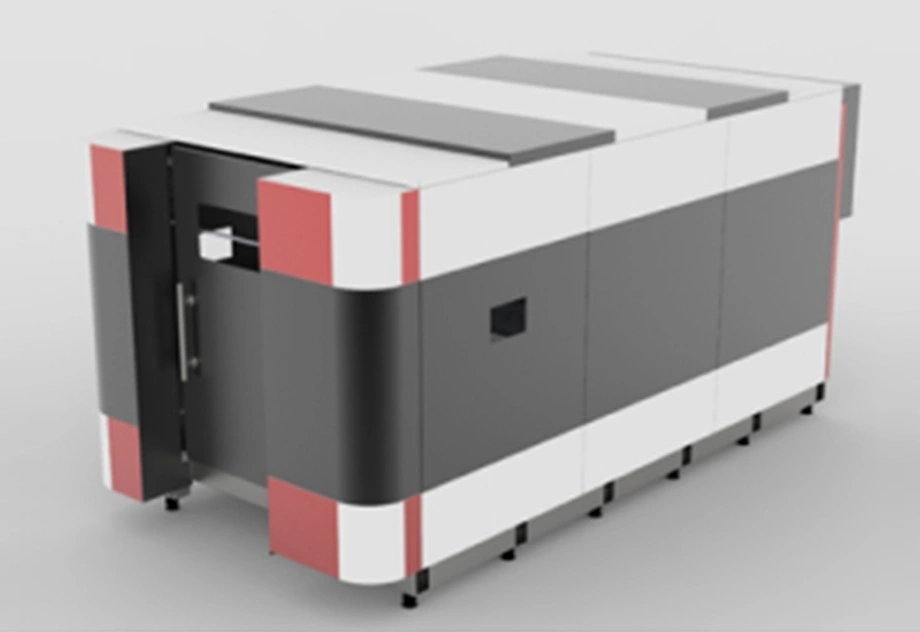

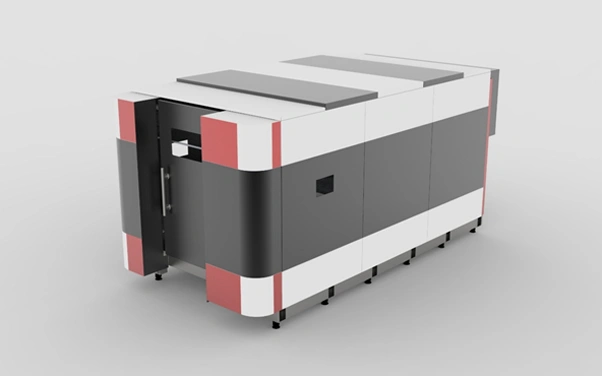

To update the exterior, we developed over 25 sheet-metal variants that balanced modern aesthetics with manufacturability. Integrated smoke venting and valve systems ensured workplace safety compliance.
The Result:
A durable, high-performance machine bed with modern styling, improved functionality, and a cost-effective interchangeable table system. The client met both budget and technical goals while gaining superior reliability and appearance.
